Alpine Frameless Pivot Door
- 150 mm width adjustment
- Adjustment range of 750 – 1900mm between two walls
- 6 Different Colour Options
- Lifetime Warranty
- 10mm toughened safety glass
- Heavy-duty stainless steel hinges
- Effortless entry with no threshold
- Description
- Purchasing Information
- AllClear Advanced Technology
- Alpine KB Lifetime Warranty
- Safety Glass – AS/NZS2208
- Installation Instructions

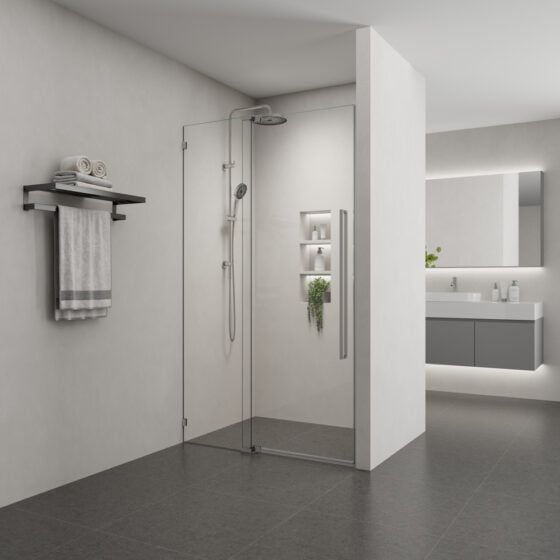

Elevate any alcove or recess with the Alpine Frameless Pivot Shower Door—Alpine’s flagship glass solution for bathrooms.
A single 10 mm toughened panel pivots smoothly, creating a seamless entry without a step, with 150mm of adjustment, making sure that we will have the perfect size for your space.
PureViewHD glass removes green tint for crystal clarity, while EasyClean nano-coating repels grime and water spots. Adjustable 150mm door width, pair with fixed panels 200–1200 mm for a perfect fit. Left or right hinging; six hardware colours—chrome, matte black, white, brushed nickel, brushed gold, gunmetal—blend with every material.
The Alpine Frameless Pivot Door has a range of 750 – 1900mm between two walls.
It is recommended when purchasing a door 1450-1600mm and above in width to use a horizontal bracing support arm to support the fixed panel of the door.
This minimalistic shower door bundle offers the highest quality in its manufacturing and materials. Made from 10mm glass coated with our Eco-Friendly advanced EASYClean technology and combined with AllClear advanced technology to give it self-cleaning properties.
FEATURES & BENEFITS
• Frameless pivot design
• 10 mm toughened safety glass
• 150 mm width adjustment
• PureViewHD clarity + EasyClean coating
• Left- or right-hand hinging
• Stainless steel hinges & magnetic seal
• Six colour options
• Lifetime warranty
Purchasing Information
|
Alpine frameless pivot doors are complete with steps 1 & 2 |
||||
|
Step 1 – Choose the size of your glass fixed panel & pivot door set |
||||
|
Width Adjustment |
Fixed Panel |
Pivot Door | Code | Retail Price inc GST |
| 750-900mm | 200mm | 550-700mm | AWISP020+APDWISP |
$520 |
| 850-1000mm | 300mm | 550-700mm | AWISP030+APDWISP |
$540 |
| 950-1100mm | 400mm | 550-700mm | AWISP040+APDWISP |
$560 |
| 1050-1200mm | 500mm | 550-700mm | AWISP050+APDWISP |
$580 |
| 1150-1300mm | 600mm | 550-700mm | AWISP060+APDWISP |
$600 |
| 1250-1400mm | 700mm | 550-700mm | AWISP070+APDWISP |
$620 |
| 1350-1500mm | 800mm | 550-700mm | AWISP080+APDWISP |
$660 |
| 1450-1600mm | 900mm | 550-700mm | AWISP090+APDWISP |
$700 |
| 1550-1700mm | 1000mm | 550-700mm | AWIS100+APDWISP |
$740 |
| 1650-1800mm | 1100mm | 550-700mm | AWISP110+APDWISP |
$780 |
| 1750-1900mm | 1200mm | 550-700mm | AWISP120+APDWISP |
$820 |
|
Height 2000mm – Door opening Size 540-690mm |
||||
|
Step 2 – Choose the colour of your hinges, brackets & handle kit |
|||
|
Colour |
Code | Recommended Retail Price inc GST | |
| Chrome | AFPDKITCH |
$260 |
|
| Matte Black | AFPDKITBK |
$260 |
|
| White | AFPDKITWH |
$260 |
|
| Brushed Nickel | AFPDKITBN |
$280 |
|
| Brushed Gold | AFPDKITBG |
$280 |
|
| Gun Metal | AFPDKITGM |
$280 |
|
*Please note prices may vary based on location due to shipping costs.
To find your closest retailer, please click here
Frameless Door Colour Options
|
6 Colour Options |
|
|
Chrome |
 |
| Matte Black |  |
| White |  |
| Brushed Nickel |  |
| Brushed Gold |  |
| Gun Metal |  |
AllClear Advanced Technology
We believe your shower time should be lavished on you, not be spent cleaning and scrubbing the enclosure. It’s why our AllClear stay-clean coating is standard on both sides of the glass on every product in our Classic and Coastline Collections.
What does it do?
AllClear’s advanced technology effectively cleans your shower for you, repelling water, lime scale and soap scum so a quick wipe is all that’s needed to keep that ’as new’ sparkle, and it’s kinder to the environment too.
In a side-by-side test you can clearly see the difference between normal glass (right) and glass with our AllClear coating.
Free to enjoy
Some manufacturers charge in excess of £100 to apply similar coatings as an optional extra. Our Classic and Coastline Collections give you the extra benefits of AllClear protection on both sides of the glass at no extra cost. AllClear is guaranteed to outperform untreated glass for 3 years so you’re free to enjoy every refreshing minute of showering.
How does it work?
Look into a microscope and you would see that standard glass actually has a pitted surface to which water, lime scale and soap scum can cling, building up with every shower and requiring regular scrubbing to keep your enclosure clean and hygienic. Inspired by nature, the AllClear coating forms an invisible, microscopically smooth shield to prevent this build up of grime. AllClear’s hydrophobic properties cause water to run off freely, washing away residue and dirt as it goes. It’s an amazing effect which has to be seen to be believed – one reason why we’ve produced a video demonstration so you can see the AllClear magic for yourself.
Good for you, better for the environment
AllClear is truly eco–friendly. Water sheets off the coated glass, washing away soap scum and grime as it goes, so it’s more hygienic and with less bacteria, there’s less need for harsh chemical cleaners – which is kind to the environment and to your pocket.
Clearly better
AllClear not only means superior performance, it’s a superior product in its own right, proven to outperform other coatings on the market. Glass coated with AllClear also has greatly enhanced the impact and abrasion resistance and 20% more brilliance.
Alpine KB Lifetime Warranty
Your new AlpineKB shower screens come with a lifetime warranty for domestic applications. If it’s our fault, we won’t quibble, and we’ll supply any replacement parts totally free of charge (This does not include any parts that are subject to wear and tear, such as but not limited to wheels and rubber seals) However, like everything, shower screens need regular care and maintenance to maintain the performance and life of these products. Our shower screen experts have put together guidelines to ensure you will get the most out of your Alpine shower screens.
Safety Glass – AS/NZS2208
Australian/NewZealand Standard – Safety glazing materials in buildings
Shower screens and doors must comply with Australian Standards AS/NZS 1288 and 2208 and be made of Grade A toughened glass or Grade B wired glass. The minimum thickness of framed toughened glass (Grade A) is 4mm. The minimum thickness of partly framed and frameless toughened glass is 6mm. However, toughened glass has been known to break into small blunt cube-like granules when a small chip of the glass disturbs the surface tension causing it to burst inward. This can be minimised by drying hinges on shower screens after each use, or cleaning them weekly with a mild soap solution, rinsing, and drying. Do not use abrasive cleaners of any kind on hinges and other hardware. Keep glass clean to prevent mineral deposits.
Always follow the manufacturer’s instructions.
