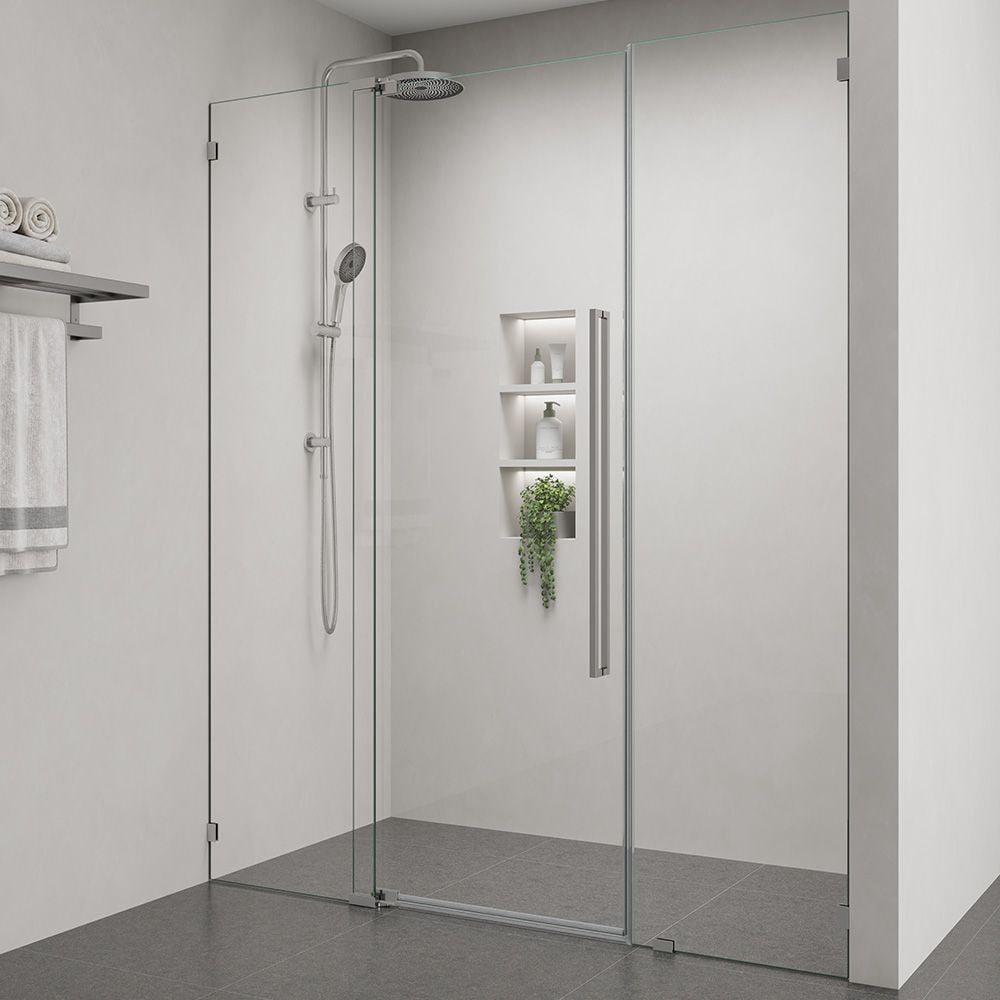

Alpine Frameless Centre Pivot Door
- 150 mm width adjustment
- Adjustment range of 950 – 3100mm between two walls
- 6 Different Colour Options
- Lifetime Warranty
- 10mm toughened safety glass
- Heavy-duty stainless steel hinges
- Effortless entry with no threshold
- Description
- Purchasing Information
- AllClear Advanced Technology
- Alpine KB Lifetime Warranty
- Safety Glass – AS/NZS2208
- Installation Instructions
Purchasing Information
Alpine frameless centre pivot doors are complete with steps 1, 2 & 3
You can use a combination of any two-sized fixed wall panels, then allow
550-700mm width adjustment for the door.
|
EXAMPLES |
||||
|
Fixed Panel |
Pivot Door | Fixed Panel | Total Width Adjustment | |
|
200mm |
550-700mm | 200mm |
950-1100mm |
|
| 300mm | 550-700mm | 500mm |
1350-1500mm |
|
| 400mm | 550-700mm | 600mm |
1550-1700mm |
|
| 700mm | 550-700mm | 800mm |
2050-2200mm |
|
| 900mm | 550-700mm | 1000mm |
2450-2600mm |
|
|
1100mm |
550-700mm | 1200mm |
2850-3000mm |
|
|
Height 2000mm |
||||
|
Step 1 – Choose the sizes of your 2 glass fixed panels any 2 combinations can be used |
|||
|
Standard Size |
Code | Retail Price inc GST | |
| 200mm | AWISP020 |
$200 |
|
| 300mm | AWISP030 |
$220 |
|
| 400mm | AWISP040 |
$240 |
|
| 500mm | AWISP050 |
$260 |
|
| 600mm | AWISP060 |
$280 |
|
| 700mm | AWISP070 |
$300 |
|
| 800mm | AWISP080 |
$340 |
|
| 900mm | AWISP090 |
$380 |
|
| 1000mm | AWISP100 |
$420 |
|
| 1100mm | AWISP110 |
$460 |
|
| 1200mm | AWISP120 |
$500 |
|
|
Step 2 – The pivot door – Door opening Size 540-690mm |
|||
|
Width Adjustment |
Code | Retail Price inc GST | |
| 550-700mm | APDWISP |
$320 |
|
|
Step 3 – Choose the colour of your hinges, brackets & handle kit |
|||
|
Colour |
Code | Retail Price inc GST | |
| Chrome | AFPDKITCH+AUBCH |
$308 |
|
| Matte Black | AFPDKITBK+AUBBK |
$308 |
|
| White | AFPDKITWH+AUBWH |
$308 |
|
| Brushed Nickel | AFPDKITBN+AUBBN |
$338 |
|
| Brushed Gold | AFPDKITBG+AUBBG |
$338 |
|
| Gun Metal | AFPDKITGM+AUBGM |
$338 |
|
*Please note prices may vary based on location due to shipping costs.
To find your closest retailer, please click here
Frameless Door Colour Options
|
6 Colour Options |
|
|
Chrome |
 |
| Matte Black |  |
| White |  |
| Brushed Nickel |  |
| Brushed Gold |  |
| Gun Metal |  |
AllClear Advanced Technology
We believe your shower time should be lavished on you, not be spent cleaning and scrubbing the enclosure. It’s why our AllClear stay-clean coating is standard on both sides of the glass on every product in our Classic and Coastline Collections.
What does it do?
AllClear’s advanced technology effectively cleans your shower for you, repelling water, lime scale and soap scum so a quick wipe is all that’s needed to keep that ’as new’ sparkle, and it’s kinder to the environment too.
In a side-by-side test you can clearly see the difference between normal glass (right) and glass with our AllClear coating.
Free to enjoy
Some manufacturers charge in excess of £100 to apply similar coatings as an optional extra. Our Classic and Coastline Collections give you the extra benefits of AllClear protection on both sides of the glass at no extra cost. AllClear is guaranteed to outperform untreated glass for 3 years so you’re free to enjoy every refreshing minute of showering.
How does it work?
Look into a microscope and you would see that standard glass actually has a pitted surface to which water, lime scale and soap scum can cling, building up with every shower and requiring regular scrubbing to keep your enclosure clean and hygienic. Inspired by nature, the AllClear coating forms an invisible, microscopically smooth shield to prevent this build up of grime. AllClear’s hydrophobic properties cause water to run off freely, washing away residue and dirt as it goes. It’s an amazing effect which has to be seen to be believed – one reason why we’ve produced a video demonstration so you can see the AllClear magic for yourself.
Good for you, better for the environment
AllClear is truly eco–friendly. Water sheets off the coated glass, washing away soap scum and grime as it goes, so it’s more hygienic and with less bacteria, there’s less need for harsh chemical cleaners – which is kind to the environment and to your pocket.
Clearly better
AllClear not only means superior performance, it’s a superior product in its own right, proven to outperform other coatings on the market. Glass coated with AllClear also has greatly enhanced the impact and abrasion resistance and 20% more brilliance.
Alpine KB Lifetime Warranty
Your new AlpineKB shower screens come with a lifetime warranty for domestic applications. If it’s our fault, we won’t quibble, and we’ll supply any replacement parts totally free of charge (This does not include any parts that are subject to wear and tear, such as but not limited to wheels and rubber seals) However, like everything, shower screens need regular care and maintenance to maintain the performance and life of these products. Our shower screen experts have put together guidelines to ensure you will get the most out of your Alpine shower screens.
Safety Glass – AS/NZS2208
Australian/NewZealand Standard – Safety glazing materials in buildings
Shower screens and doors must comply with Australian Standards AS/NZS 1288 and 2208 and be made of Grade A toughened glass or Grade B wired glass. The minimum thickness of framed toughened glass (Grade A) is 4mm. The minimum thickness of partly framed and frameless toughened glass is 6mm. However, toughened glass has been known to break into small blunt cube-like granules when a small chip of the glass disturbs the surface tension causing it to burst inward. This can be minimised by drying hinges on shower screens after each use, or cleaning them weekly with a mild soap solution, rinsing, and drying. Do not use abrasive cleaners of any kind on hinges and other hardware. Keep glass clean to prevent mineral deposits.
Always follow the manufacturer’s instructions.
